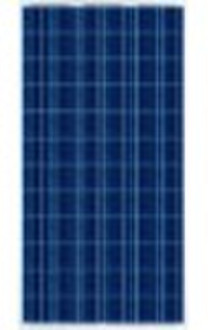

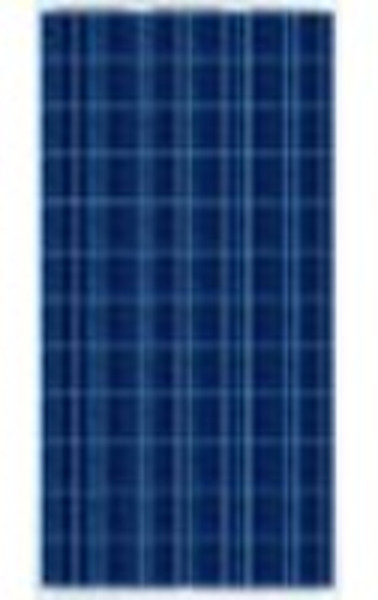

TUV certificate Poly solar panel(QSSM-270P)
original price: 1,28 USD
Simon Xu
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | Chinsun |
| Model Number | QSSM-270P |
| Size | 1957x992x50mm |
| Number of Cells | 72 |
| Max. Power | 270 |
| Material | Polycrystalline Silicon |
TUV poly Solarpanel with 72pcs 156x156 silicon cells. Poly-crystalline silicon solar cell with high efficiency. High transmission rate and low iron tempered glass. Anti-aging EVA , high frame resistant TPT to laminate and anodized aluminum alloy frame. Our products with high efficiency, longlife, easy installation,high wind and hail impact resistance etc advantages. Warranty for 25 years, 90% of original efficiency in 10 years, 80% in 25 years. Item No. QSSM-270P Ratedmax power(Pmax) 270W Open circuit voltage(V) 43.2 Short circuit current(A) 8.31 Voltage at max power(V) 36 Current at max power(A) 7.5 Power tolerance: ±3% Product size(mm) 1957x992x50 Weight(kg) 22.5 Maximum system voltage 1000VDC NOCT 50 Max series fuse rating 15A Operating temperature -40 to 85 All technical data at standard test condition AM=1.5 E=1000W/m2 TC=25
Delivery terms and packaging
Packaging Detail: 2pcs per carton Delivery Detail: 10
Port: ningbo
